| voltage | DC5~24V |
| Detect magnetic poles | LSPS0241S, LSPS0241HS, LSPS0241P- □: S pole |
| LSPS0241N, LSPS0241HN,: N pole |
| Magnetic sensitivity | LSPS0241;2.5 ~ 3.5mT |
| LSPS0241HS;0.8±0.2mT |
| LSPS0241HN;0.9±0.2mT |
| LSPS0241P;0.5±0. 1mT |
| Magnetic detection direction | Front |

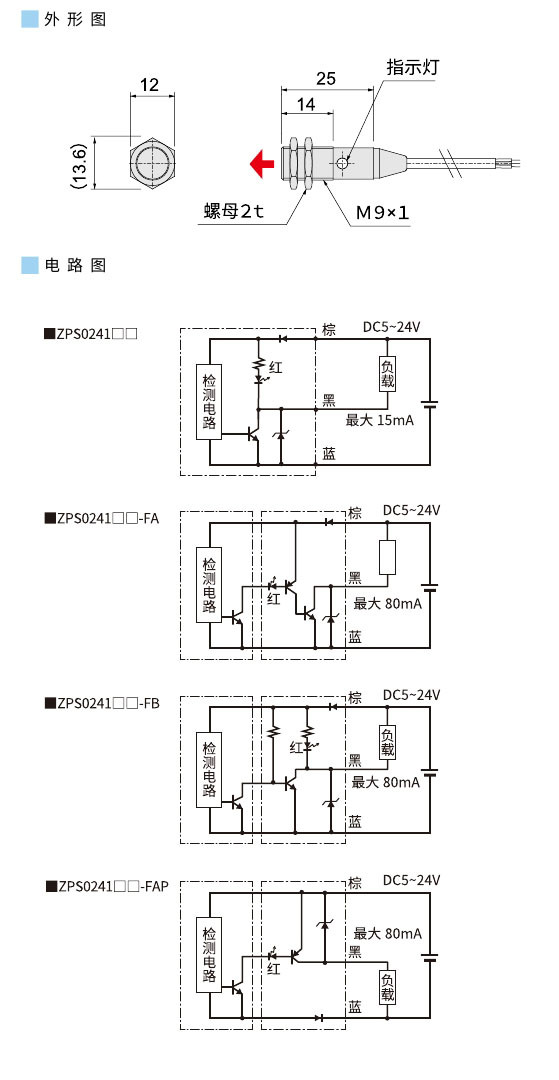

| output method | NPN normally open (ON during operation) |
| LSPS0241S/N,LSPS0241HS/N,LSPS0241P |
| LSPS0241 □□-FA |
| NPN normally closed (OFF during action) |
| LSPS0241 □□-FB |
| PNP, normally open (ON during action) |
| LSPS0241 □□ -FAP |
| Output current | LSPS0241 □□ ;15mA MAX |
| LSPS0241 □□ -FA/FB/FAP;80mA MAX |
| Current consumption | LSPS0241 □□ ;8mA MAX |
| LSPS0241 □□ -FA/FB/FAP;15mA MAX |
| Response time | 5μ sec or less |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃～ +85℃ (no condensation) |
| Working environment humidity | 20～95%RH |
| Wire specifications | φ2.8×1000mm※1 |
| S pole: gray |
| N pole: black |
| shell material | GF reinforced PBT; black |
| Install | M9 nut tightening torque 05N·m |
| Installation hole processing dimensions | φ9 +0(0).5 |
| indicator light | red |
| protection level | IP67 |
※1 The cable can be extended
