| voltage | DC5~24V |
| Detect magnetic poles | LSPSM0241S, LSPSM0241HS, LSPSM0241P- □: S pole |
| LSPSM0241N, LSPSM0241HN, ：N pole |
| Magnetic sensitivity | LSPSM0241:2.5 ~ 3.5mT |
| LSPSM0241HS:0.8±0.2mT |
| LSPSM0241HN:0.9±0.2mT |
| LSPSM0241P:0.5±0.1mT |
| Magnetic detection direction | Front |

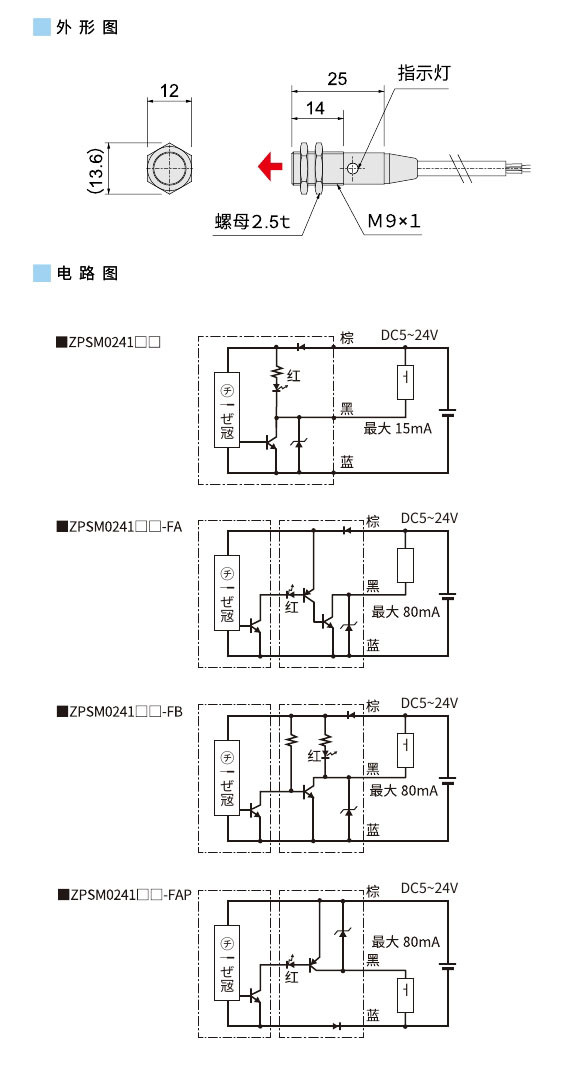

| output method | NPN normally open (ON during operation) |
| LSPSM0241S/N, LSPSM0241HS/N, LSPSM0241P |
| LSPSM0241 □□-FA |
| NPN normally closed (OFF during action) |
| LSPSM0241 □□-FB |
| PNP, normally open (ON during action) |
| LSPSM0241 □□ -FAP |
| Output current | LSPSM0241 □□ ;15mA MAX |
| LSPSM0241 □□ -FA/FB/ FAP;80mA MAX |
| Current consumption | LSPSM0241 □□ ;8mA MAX |
| LSPSM0241 □□ -FA/FB/ FAP;15mA MAX |
| Response time | 5μ sec or less |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃～ +85℃ (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | φ2.8×1000mm※1 |
| S pole: gray |
| N pole: black |
| shell material | SUS303 |
| Install | M9 nut tightening torque 05N·m |
| Installation hole processing dimensions | φ9＋0(0).5 |
| indicator light | red |
| protection level | IP67 |
※1 The cable can be extended
