| voltage | DC5~24V |
| Detect magnetic poles | LSPS023H-S: S pole |
| LSPS023H-N: N pole |
| Magnetic sensitivity | LSPS023H-S: 0.7±0.15mT |
| LSPS023H-N: 0.8±0.15mT |
| Magnetic detection direction | forward |
| output method | NPN normally open (ON during operation)※1 |
| Output current | 15mA MAX ※1 |
| Current consumption | 8mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | -20° C~+85° C (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | φ2.8×1000mm※1 |
| S pole: gray |
| N pole: black |
| shell material | Glass fiber reinforced resin: black |

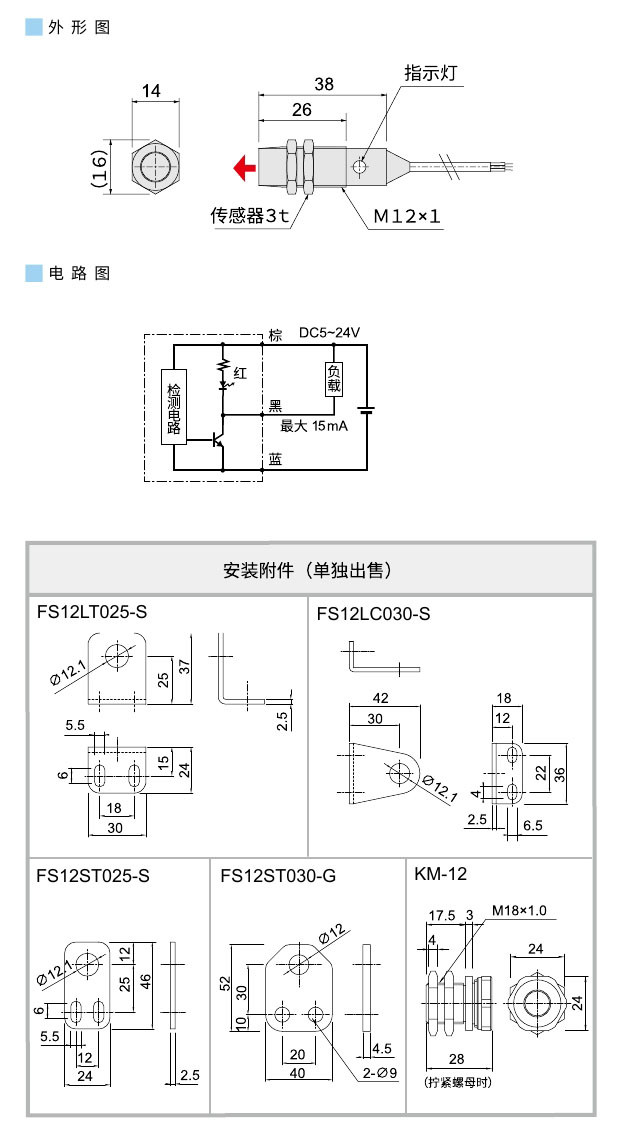

| Install | M12 nut tightening torque 2N·m |
| It is recommended to use adhesive to prevent loosening. |
| Installation hole diameter processing dimensions | Φ12 +0(0).5 |
| indicator light | red |
| protection level | IP67 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
