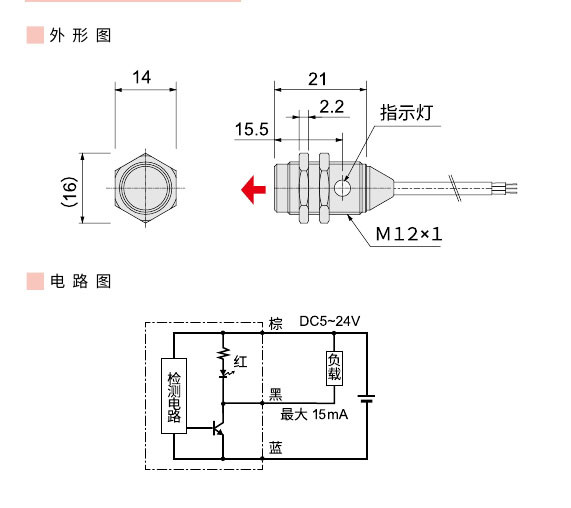

Specification
| voltage | DC5~24V |
| Magnetic detection direction | forward |
| Maximum detection distance | Please refer to the distance detection test example (picture below) |
| output method | LSPSF012: |
| NPN normally open (ON during operation) ※1 |
| LSPSF012(B)： |
| NPN Normally closed (OFF during action) |
| Output current | 15mA MAX ※1 |
| Current consumption | 8mAMAX |
| Response time | 30m sec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃~ +85℃ (no condensation) |
| Working environment humidity | 20~80%RH |
| Wire specifications | φ2.8×1000mm※1 |
| LSPSF012: gray |
| LSPSF012(B): black |
| shell material | SUS303 |
| Install | M12 nut, tightening torque 12N·m |
| Installation hole diameter processing dimensions | φ12 +0.5 0 |
| indicator light | red |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
Example of distance detection test (detection in horizontal direction)
| Testing materials | Detection distance approx. (mm) |
| Square iron plate 50×10t | 6 |
| Iron plate 10t wide 10 | 5 |
| Iron plate 0.05t width 10 | 4 |
| High speed steel drill φ2 | 3 |
| Iron plate 0.03t width 10 | 2 |
※ Notice※
1. When the sensor detects downward, the detection distance increases by approximately 10%. When the sensor detects upward, the detection distance decreases by approximately 10%.
2. The sensor has magnetic field attraction, please fix the detection material.
3. The test value is only a reference value, not a guaranteed value.
4. It cannot be used as a position detection sensor.
