| voltage | DC5~24V |
| Detect magnetic poles | S pole |
| Magnetic detection direction | up |
| Maximum detection distance | 15mm (when used in combination with door magnets) |
| output method | NPN normally open (ON during operation) | ※1 |
| Output current | 15mAMAX | ※1※2 |
| Current consumption | 8mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃~ +85℃ (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | φ2.8×1000mm gray | ※1 |
| shell material | Glass fiber reinforced resin: black |

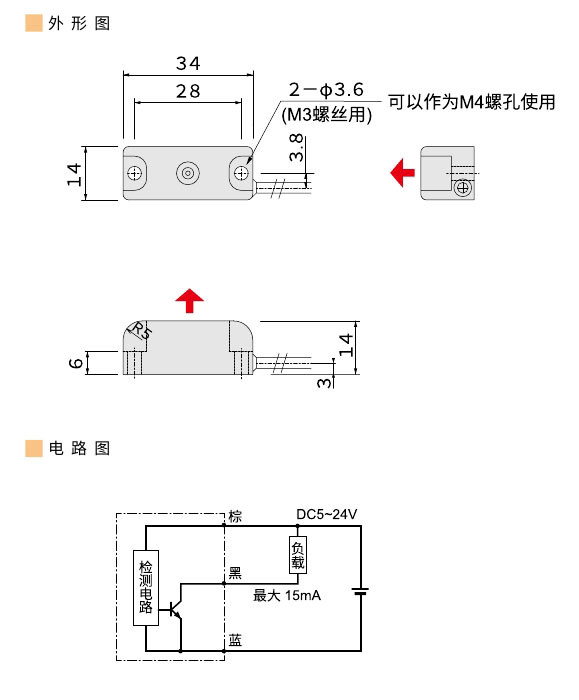

| Install | M3 nut, tightening torque 0.8N·m ※3 |
| protection level | IP67 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
※2 Output current 80mAMAX, please refer to P105.
※3 Can be used by M4 tap hole processing.
