| voltage | DC5~24V |
| Detect magnetic poles | S pole |
| Magnetic sensitivity | 2.5~ 3.5mT |
| Magnetic detection direction | forward |
| output method | NPN normally open (ON during operation) |
| Output current | 15mAMAX |
| Current consumption | 8mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing) |
| Working temperature | -20° C~+85° C (no condensation) |
| Working environment humidity | 20~95%RH |

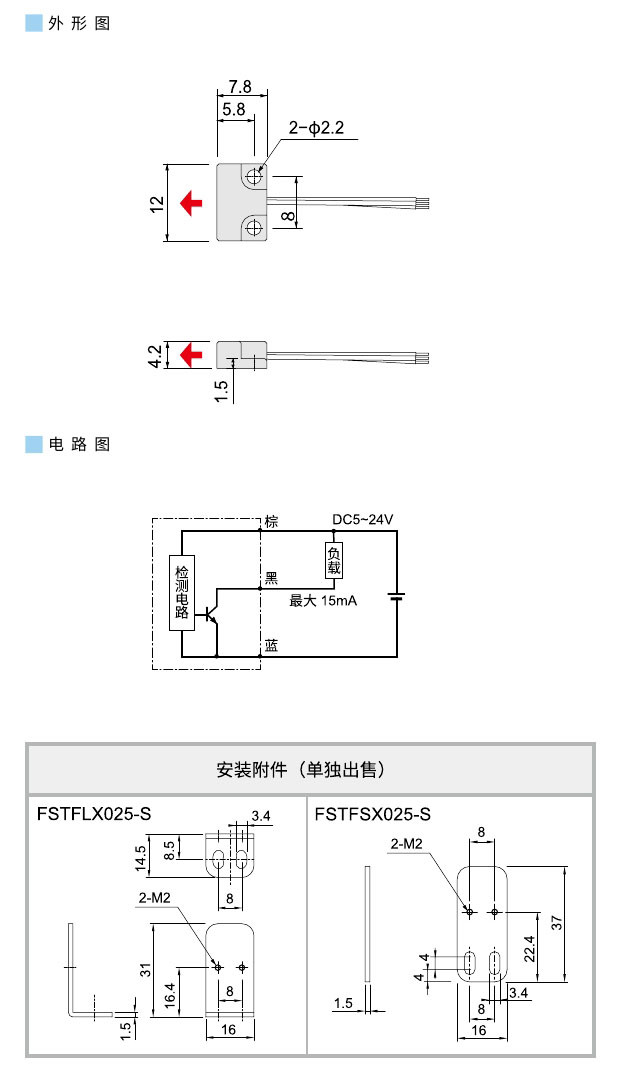

| Wire specifications | 3 core wires, Φ0.9x300mm |
| shell material | Glass fiber reinforced resin: green |
| Install | M2 screw, tightening torque 0. 15N·m |
| protection level | IP65 |
