voltage	DC5~24V
journey	3.5mm
Operating force	F: 2N Note)
	W: 3N
Waterproof	F: The front of the fixed plate is waterproof
	W: Waterproof on both sides
Working point position [PT]	1.2mm
Hysteresis	0.02mm
Repeatability	±0.04mm
output method	LSTSM16:
	NPN normally open (ON during operation)
	LSTSM16(B)：：
	NPN normally closed (OFF during action)
Output current	15mAMAX
Current consumption	8mAMAX
working frequency	60 times/min or less
Withstand voltage	AC1000V
	1 minute, between the entire charging part and the casing
Insulation resistance	DC250V
	20MΩ or more, between the entire charging part and the casing
Working temperature	- 20℃~ +85℃ (no condensation)
Working environment humidity	20~95%RH
Wire specifications	φ2.8×1000mm
	LSTSM16: gray
	LSTSM16(B): black
Sealing cover material	Sealing plastic·VMQ70 silicone
Housing and nut material	SUS303

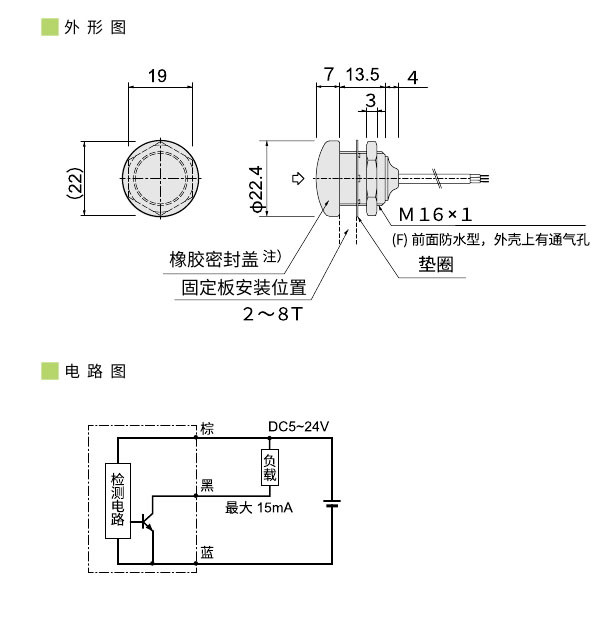

Install	M16 nut, tightening torque 20N·m or less
Installation hole diameter processing dimensions	φ16 0
protection level	IP67

Note) When installing, be sure to tightly combine the rubber sealing cover and the fixing plate. If there is a gap between the rubber sealing cover and the sensor body, it will affect the performance of the product.

※ Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
