IO-Link USB Master
13/03/2025
IO-Link USB Master
Technical Parameters

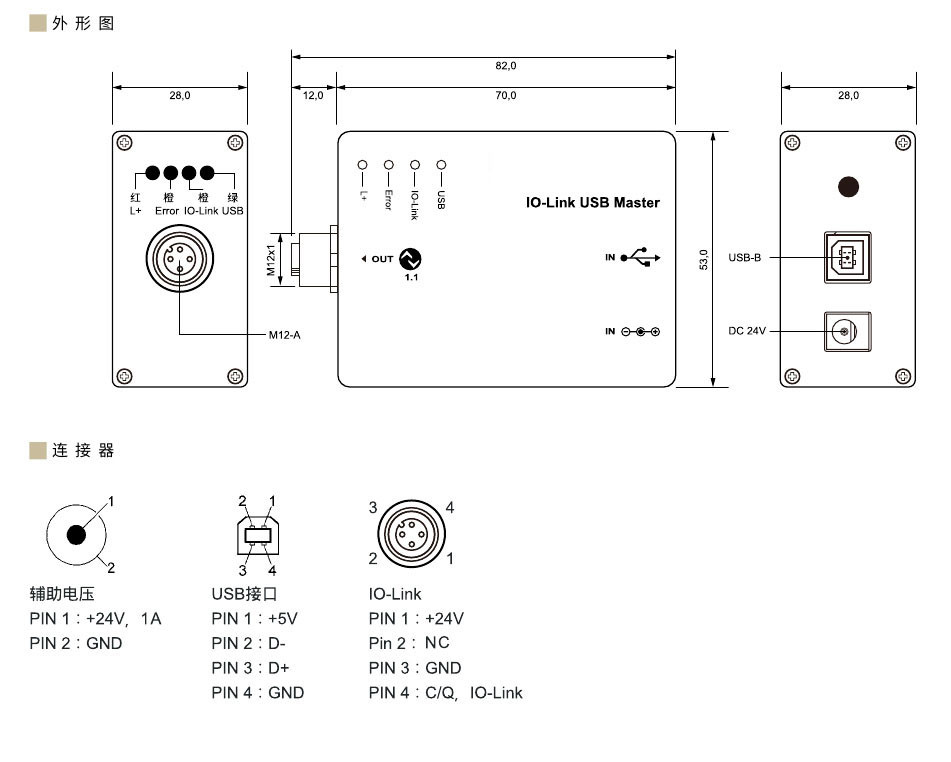

Outline drawing & circuit diagram

Use

Its purpose is to connect IO-Link sensors to a PC via a USB port. The included software allows easy configuration and parameterization of IO-Link sensors, as well as sensor diagnostics. For sensors with low current consumption, power is supplied directly from the USB Master. For sensors with higher current consumption, an external power supply can be used. The equipment is ideally suited for testing purposes as well as for commissioning and repair operations.


Specification

indicator runningUSB indicator: LED green
IO-Link indicator: LED orange
Diagnostic error indicator: LED orange
L+ indicator light: LED red
Interface TypeIO-Link
letter of agreementIO-LinkV1.1
Technical dataBaud rate COM 1 (4.8kBaud)
Baud rate COM 2 (38.4kBaud)
Baud rate COM 3 (230.4kBaud)
Sensor supply voltageLoad current max. 80mA via USB, 200mA via external power supply
ambient temperature0~45° C
Storage temperature-40~80° C
Relative humidity95% no condensation
Protection levelIP20 (when connected correctly)
IO-Link connection port4-pin, M12x1 socket
Operating VoltageDC24V,  2.1mm
USB 2.0USB plug-in connector
shellAluminum housing
qualityAbout 100g
Scope of deliveryUSB connection cable IO-Link link cable USB Master
