voltage	DC5～24V
Number of sensors	1 to 4
journey	6mm
Operating force	0.8～1.2N
Return difference[MD]	0.08mm or less
Repeatability	±0.001mm
output method	NPN normally open (ON during action)
Output current	15mAMAX
Current consumption	8mAMAX
working frequency	60 times/min or less
Withstand voltage	AC1000V
	1 minute, Between the entire charging part and the casing
Insulation resistance	DC250V
	20MQ or more, Between the entire charging part and the casing
Working temperature	-20℃~+85℃(no condensation)
Working environment humidity	20～95%RH
Wire specifications	3～6 coresφ3.6(MAX) ×1000mm
Rubber tube material	Nitrile rubber
Housing and nut material	SUS303
Install	M14 nut, Tightening torque: 18N·m or less

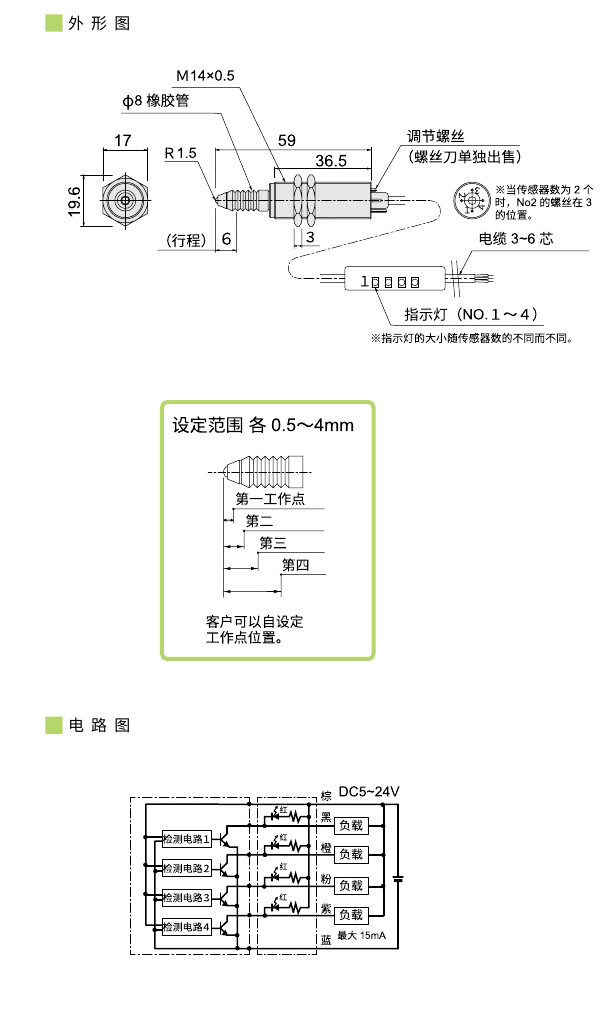

Installation hole diameter processing dimensions
indicator light	About 100mm from the sensor body
protection level	IP67

Note 1) Please make sure that the angle between the object being detected and the operating lever does not exceed 5°.

Note 2) Please do not rotate the contact head.

Note 3) Please do not rotate the adjustment screw on the rear of the housing too far, as it may be damaged.
